Amplifier

MA Series 2CH

Short circuit protection
Over load protection
DC protection
Output of automatic limit
Product description:

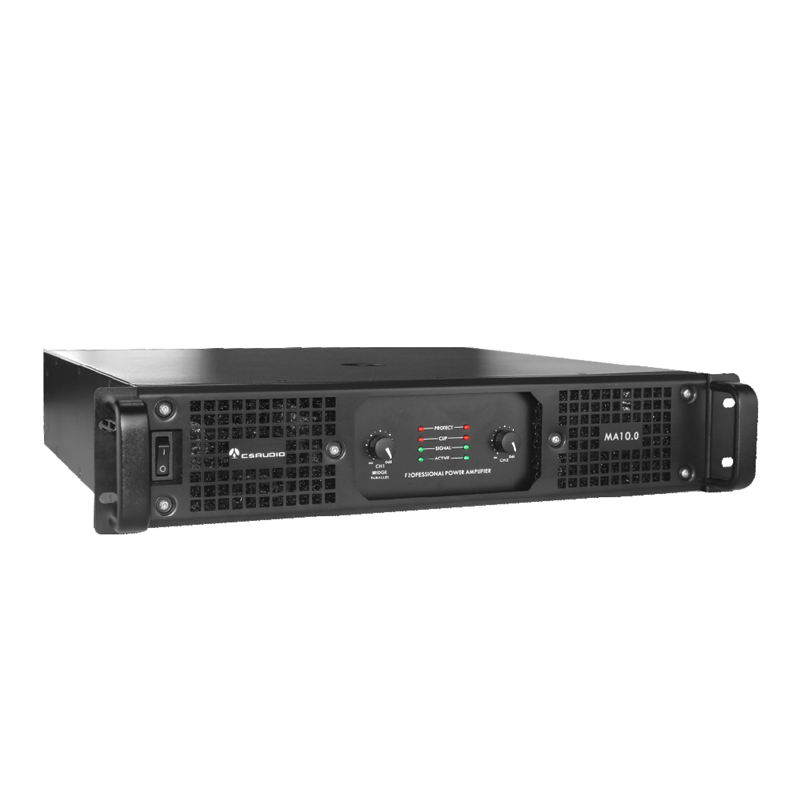

MA Series 2CH power amplifier

Features
 MA series use a very mature 2 H class switching circuit topology

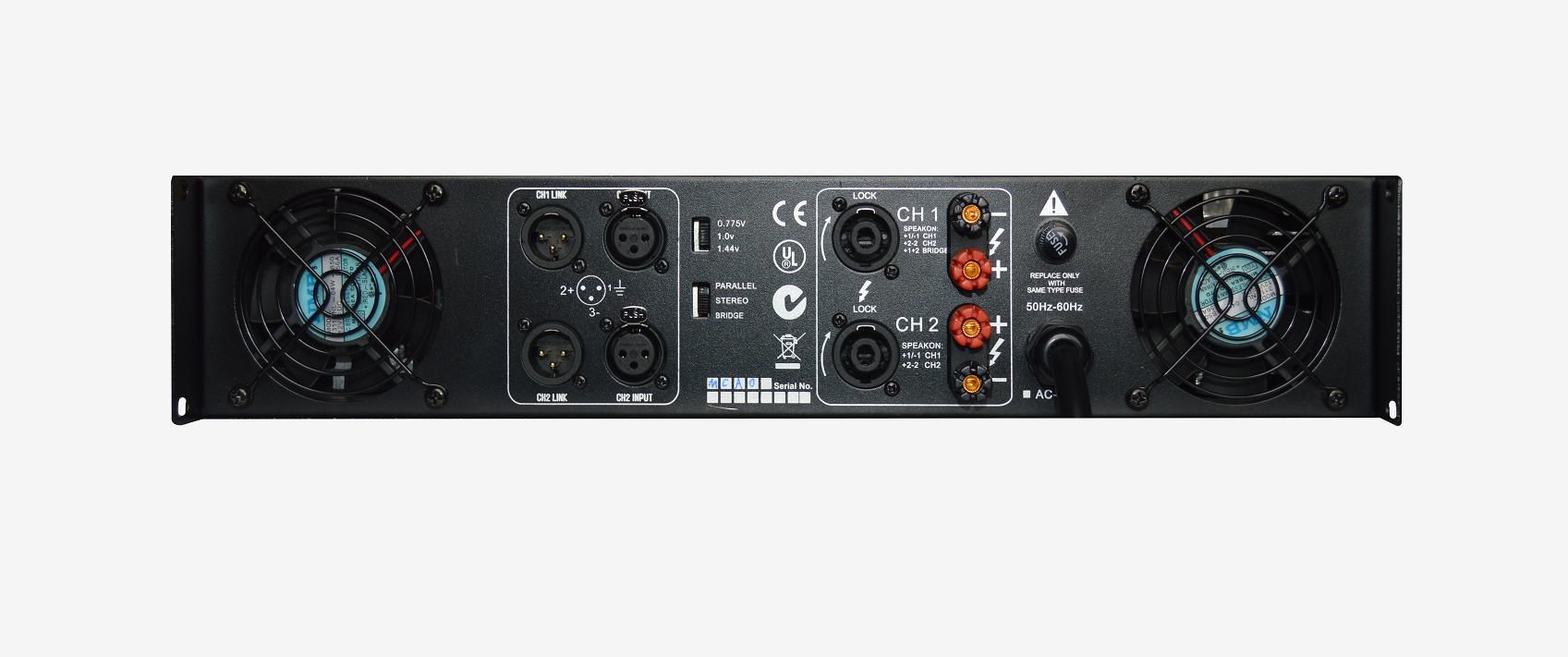

 XLR input connectors and link connectors
 SpeakON NL4 output connectors
 Input sensitivity selector on rear panel (32dB/1v/0.775v)
 Link mode selector on rear panel(stereo / bridging /parallel)
 Channel independent alarm indicators(temperature/protection/clip)on front panel
Superior electronic components
 As the CS audio marketing king, MA series only use the components from the market which is considered most durable and superior.
 Adopt imported ONSEMICONDUCTOR transistors 0302/0281, professional customized audio button-type wires, which can prevent the transportation loss.
 Long-lived capacitors features high heat proof, high frequency and low resistance, pursue quality regardless of costs.
 MA series amplifiers adopt high-quality pure copper transformer, electromagnetic loss and temperature rise is very low by using imported silicon steel sheet core.
Tone features
 The high frequency clear, warm tone
 Mid frequency warm and full, voice full of charm
 The low frequency bass heavy and powerful, moderate sense of forcefulness
Multiple protections
 Short circuit protection
 Over load protection
 DC protection
 Output of automatic limit

2 Channel Specifications

Specification		MA3.0	MA4.0	MA6.0	MA8.0	MA10.0	MA12.0
Rated power (20Hz-20KHz, <0.1%THD)	8Ω Stereo	300W x2	400W x2	600W x2	800W x2	1000W x2	1200W x2
	4Ω Stereo	450W x2	600W x2	900W x2	1200W x2	1650W x2	1850W x2
	2Ω Stereo	/	/	/	1800W x2	2475W x2	2775W x2
	8Ω Bridge	600Wx1	800Wx1	1200Wx1	1600Wx1	2000Wx1	2400Wx1
	4Ω Bridge	/	/	/	/	/	/
Protective system	DC protection	V
	Short circuit protection	V
	Overheat protection	V
	Over load protection	V
	Soft start protection	V
Frequency response（1W8Ω Stereo）		20 Hz – 20 kHz(0.5~-1.5dB)
Input Sensitivity		0.775V/1V/1.4V
Working mode		Stereo/Barallel/Bridge
Connecting terminal	Input	XLR Male/Female
Connecting terminal	Output	Output socket
Input impedance	balance	20 KΩ	20 KΩ	20 KΩ	20 KΩ	20 KΩ	20 KΩ
Input impedance	unbalanced	10 KΩ	10 KΩ	10 KΩ	10 KΩ	10 KΩ	10 KΩ
Crosstalk attenuation（20HZ-20KHZ,rated power 8Ω）		>60dB	>60dB	>60dB	>60dB	>60dB	>60dB
S/N Rate（rated power 8Ω）		>108 dB	>108 dB	>108 dB	>108 dB	>108 dB	>108 dB
Damping factor（1kHz&8Ω）		>200	>200	>200	>300	>300	>300
THD（8Ω & 20Hz-20KHz）		<0.03%	<0.03%	<0.03%	<0.05%	<0.05%	<0.05%
Slew Rate		>20V/uS	>20V/uS	>20V/uS	>20V/uS	>20V/uS	>20V/uS
Output circuit		Class AB	Class AB	Class 2H	Class 2H	Class 2H	Class 2H
power waste（Full channel 4Ω, 1/8RMS/230V）		2.5A	2.5A	6.0A	2.3A	5.7A	7.2A
Installation		2U	2U	2U	2U	2U	2U
Carton dimension(WxHxD)		570560145mm	570x560x145mm	570x560x145mm	570x560x145mm	570x560x145mm	570x560x145mm
Net/Weight		18Kg	21Kg	23Kg	25Kg	28Kg	30Kg

The inner and outer package size, net weight and gross weight reflected in the data are for reference only, and the exact value is subject to the label on the carton.

Remark

1.*, The power is tested under EIA standard.

2. **, The power is tested under the condition of 40ms burst,1KHz sine wave and 1% THD.

3, the power test marked with’**’can’t be used the power sine wave signal directly to test, or the DC insurance and other components may be broke
